It is the installer’s responsibility to build an environment where the audio, video and lighting elements of the room enhances the atmosphere. This level of excellence is achieved, in part, through the use of detailed installation and visualization drawings.
“With us, nothing gets installed until it’s first drawn,” emphasizes Darren Cooper, President of Front Porch Media. “Our installation drawings are fundamental to our process. They allow us to transform ideas into concrete plans that guide every step of our installations.”
Adam Foster, Systems Engineer at Front Porch Media, explains the importance of these drawings:

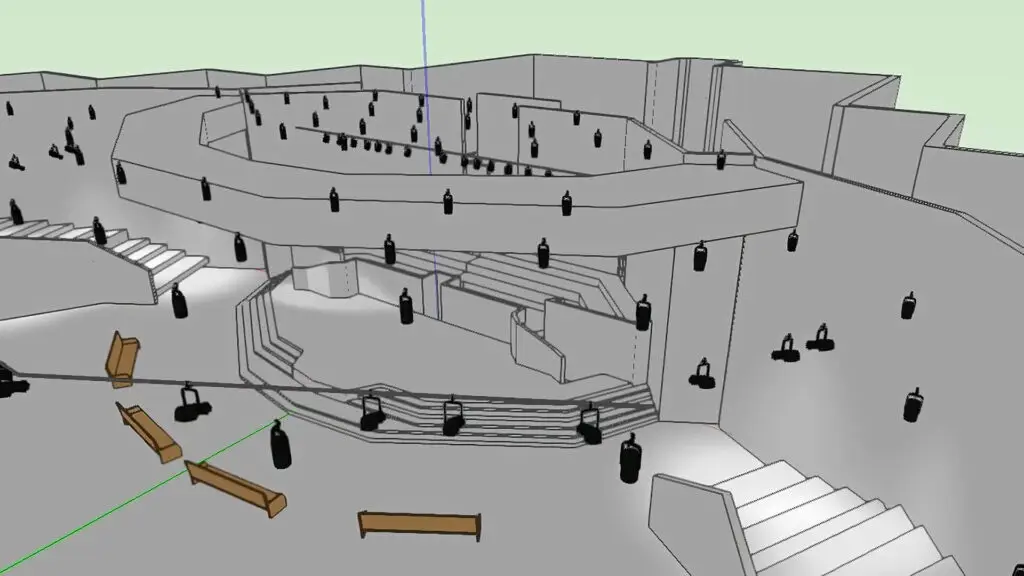

“We use VectorWorks as our preferred CAD drafting software, which helps us create detailed 2D and 3D drawings. These drawings are invaluable for visualizing the layout of audio speakers, video screens, and lighting fixtures within the space. 3D Renderings also help us provide real-world design and visualization for our clients to see before it is installed in their space.”
Vectorworks & It’s Capabilities
VectorWorks is a sophisticated CAD software that enables designers and engineers to create detailed architectural and technical drawings. It supports both 2D drafting and 3D modeling, providing a comprehensive platform for planning and visualizing complex projects like AV installations. Its intuitive interface and robust tools make it a preferred choice for professionals in the architecture, engineering, and entertainment industries.
Crafting Detailed Plans: The Front Porch Media Approach
Before starting any installation, Front Porch Media conducts a thorough assessment of the worship space. This includes precise measurements and consideration of architectural features, all integrated into the detailed installation drawings created with VectorWorks. This meticulous planning ensures that the technology integrates seamlessly with the church’s aesthetic and functional requirements.
“The installation drawings are more than just a blueprint for our projects,” Cooper continues. “They help us anticipate challenges and ensure smooth execution during installation.”
AVL Integrators and Drawings Go Hand-In-Hand
Cooper emphasizes the importance of choosing an AVL integrator that can provide comprehensive installation drawings:
“It’s crucial for churches to partner with a team that can produce detailed plans. These drawings not only streamline the installation process but also serve as valuable documentation for future maintenance and upgrades.”
Mapping PA Coverage Virtually
In addition to CAD software like VectorWorks, AVL integrators utilize coverage map software to simulate and visualize the distribution of sound for PA speakers. This software allows them to model how sound waves flow throughout the worship space, considering factors such as acoustics, speaker placement, and audience areas. This software also predicts Sound Pressure Level (SPL) across the venue, ensuring that sound levels are consistent and appropriate for the space. Frequency response analytics further refine the system design by analyzing how different frequencies are distributed, helping to adjust speaker placements and settings for balanced audio quality. By analyzing these simulations, AVL professionals can optimize speaker positioning to achieve uniform coverage and optimal sound quality. Many manufacturers, such as D&B, L-Acoustics, and others, offer their own proprietary mapping software tailored to their speaker systems, providing integrators with specific tools to optimize performance and ensure compatibility with their products.
Advancing the Worship Experience
As the art of worship production evolves, so do tools like VectorWorks and other CAD softwares. Producing drawings like these are paramount to creating seamless, impactful worship environments.
“Dedication to thoughtful planning should drive every project,” Cooper says. “Detailed installation drawings empower us to bring creative visions to life, ensuring each installation meets the unique needs of our church partners.”
